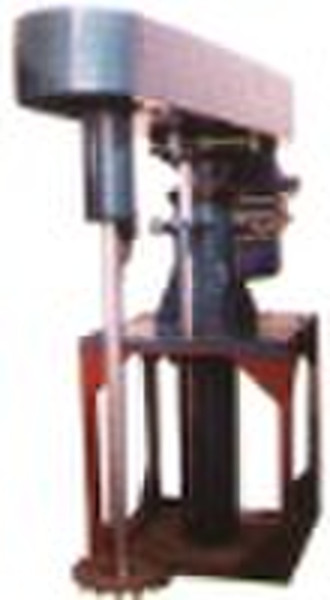

TFJ-C series suspend electromagnetic speed control

TFJ-C serials hanging high speed separate machine is used for chemical trade such as dope, dye, printing ink, paper, stickness substance to mix, dissolve and separate between the liquid and liquid-solid substance, the granule will be smaller, the type include fixed speed, double speed and speed adjustable. The lift of mix parts is depend on the hydraulic pressure, all operations is located in the special electrical cabinet. Technical Parameter Model 150250 350Parameter TFJ 1.5/2.2 TFJ 4 TFJ 5.5/7.5 TFJ11 TFJ11 TFJ 15or18.5 TFJ22 TFJ30 TFJ45 Motor Power (KW) 1.5/2.2 4 5.5/7.5 9/11or11 9/11or11 15or18.5 22 or18.5/22 30 32/42or45 Dispersion axle rotating speed (r/min) 0-1200 0-1200 0-1200 1065/2130 0-1200 1065/2130 0-1200 1065/2130 0-1200 0-1200 800/1200 0-1200 0-1200 800/1200 Lift(mm) 600 600 1000 1000 1000 1200 1200 1200 1450 Weight(Kg) 300 500 700 800 1200 1200 1200 1200 2500 Model Special Model Parameter TFJ55/75 TFJ90 TFJ110 TFJ132 Motor Power (KW) 55or75 90 110 132 Dispersion axle rotating speed (r/min) 0-1200 800/1200 1000 or adjustable Lift(mm) 1600 1800 2100 2200 Weight(Kg) 3500 4000 4200 4300
